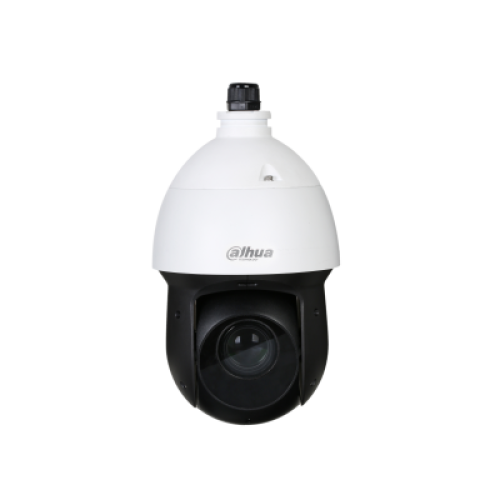

DH-SD49225-HC-LA PTZ Camera
Product Overview: The DH-SD49225-HC-LA is a high-performance PTZ (Pan-Tilt-Zoom) camera engineered for diverse surveillance applications. It delivers superior image quality with a 2MP resolution and 25x optical zoom, making it ideal for detailed monitoring and wide-area coverage. With advanced features like impressive low-light performance and extensive PTZ functionality, this camera is designed for reliable operation in various environments.
Key Features:
- Image Sensor: 1/2.8" STARVIS™ CMOS for high-quality image capture.
- Resolution: Maximum resolution of 1920 × 1080 (1080P) for clear and detailed images.
Lens:
- Focal Length: 4.8 mm–120 mm
- Max Aperture: F1.6–F3.5
- Optical Zoom: 25x
- Field of View:
- Horizontal: 58.5°–2.8°
- Vertical: 33.2°–1.5°
- Diagonal: 67.5°–3.2°
- Close Focus Distance: 0.1 m–1.5 m (0.33 ft–4.92 ft)
Illumination:
- Minimum Illumination:
- Color: 0.005 Lux @ F1.6
- B/W: 0.0005 Lux @ F1.6
- IR: 0 Lux @ F1.6 (IR on)
- Illumination Distance: Up to 100 m (328.08 ft)
- Illuminator Control: Auto/Manual with 6 illuminators
PTZ Specifications:
- Pan/Tilt Range:
- Pan: 0°–360°
- Tilt: -15° to +90° (auto flip 180°)
- Manual Control Speed:
- Pan: 0.1°–200°/s
- Tilt: 0.1°–120°/s
- Preset Speed:
- Presets: 300
- Tours: 8 tours with up to 32 presets per tour
- Pattern: 5
- Scan: 5
- Speed Adjustment: Supported
- Power-off Memory: Supported
- Idle Motion: Preset, Tour, Pattern, Scanning
Video Performance:
- Resolution Options: 1080P, 720P, D1
- Frame Rate:
- 1080P: 25/30 fps
- 720P: 25/30/50/60 fps
- Day/Night Mode: Supported
- BLC (Back Light Compensation): Supported
- WDR (Wide Dynamic Range): 120 dB
- HLC (High Light Compensation): Supported
- White Balance: Auto, Indoor, Outdoor, Tracking, Manual
- Gain Control: Auto/Manual
- Noise Reduction: 2D/3D
- Defog: Electronic
- Digital Zoom: 16x
- Flip: 0°/180°
- Privacy Masking: Up to 24 areas
Video Output Modes:
- CVI Product Output Mode: CVI, TVI, AHD, CVBS
Audio:
- Compression: G.711a, G.711Mu
- Audio Input: 1 channel (LINE IN, bare wire)
Alarm:
- Alarm Input: 2
- Alarm Output: 1
Power:
- Power Supply: DC 12V/3A ± 10%
- Power Consumption:
- Normal Operation: 9.6 W
- IR Light On, PTZ: 23.2 W
Environmental Specifications:
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Operating Humidity: ≤ 95% RH
- Protection: IP66 rated; includes lightning protection and surge protection
Physical Dimensions:
- Dimensions: 295.4 mm × Φ160.0 mm (11.63" × Φ6.30")
- Weight:
- Net: 3 kg (6.61 lb)
- Gross: 4.2 kg (9.26 lb)
Certifications:
- CE: Compliant with EN standards
- FCC: Compliant with Part 15 subpart B
- UL: UL60950-1 and CAN/CSA C22.2 No.60950-1
This PTZ camera is well-suited for robust surveillance needs, providing high-quality imaging and versatile monitoring capabilities in various conditions.
