Product Description

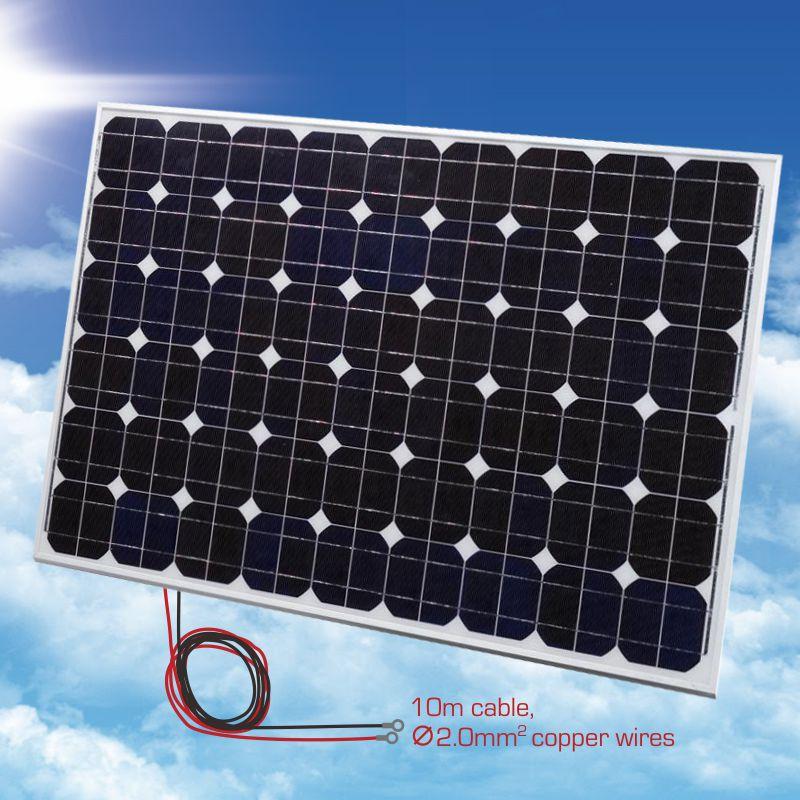

The Qasa 200W Solar Panel (QSP-200W18) is built with high-efficiency monocrystalline solar cells, delivering exceptional power output for a variety of applications. Designed for durability and performance, this panel is suitable for both residential and commercial energy needs.
Key Features
- Maximum power output of 200W, providing substantial energy for various applications.
- Nominal voltage of 18V, ideal for efficient charging of systems and devices.
- High current output with a maximum power current (Imp) of 11.1A.
- Open circuit voltage (Voc) of 21.6V for effective energy transfer.
- Short circuit current (Isc) of 11.8A ensures reliable performance under varying conditions.
- Wide operating temperature range from -40°C to -85°C for extreme environments.
- Sturdy aluminum frame (30mm) for enhanced durability and stability.
- High-quality EVA laminate for weather resistance and longevity.
- Compact dimensions of 1340 x 992 x 30 mm for efficient installation options.
- Comes with 7 meters of 2*2mm² installation wire for convenient connectivity.
- Copper wires with dimensions A=B=6mm for dependable electrical flow.
- Connector type: 3.5-6 terminal, compatible with a variety of systems.
Specifications
- Maximum Power: 200W
- Maximum Power Voltage (Vmp): 18V
- Maximum Power Current (Imp): 11.1A
- Open Circuit Voltage (Voc): 21.6V
- Short Circuit Current (Isc): 11.8A
- Maximum Operating Temperature: -40°C to -85°C
- Aluminum Frame: 30mm
- Laminate Material: EVA
- Dimensions: 1340 x 992 x 30 mm
- Installation Wire Size: 2*2mm², 7m length
- Copper Wires: A=B=6mm
- Weight: 16.5 kg
- Connector Type: 3.5-6 terminal
